The Open University McArthur Microscope

This is an amazing little instrument... although small, lightweight and almost entirely plastic, it makes a very serviceable field instrument.

The image is pretty good, too: see below for a comparison with Zeiss Standard set up with Leitz DIC optics.

I have modified mine to use LED illumination following the method described by John Garrett in Micscape Magazine: Using a white LED in the Open University microscope.

This works well and battery life has been no problem.

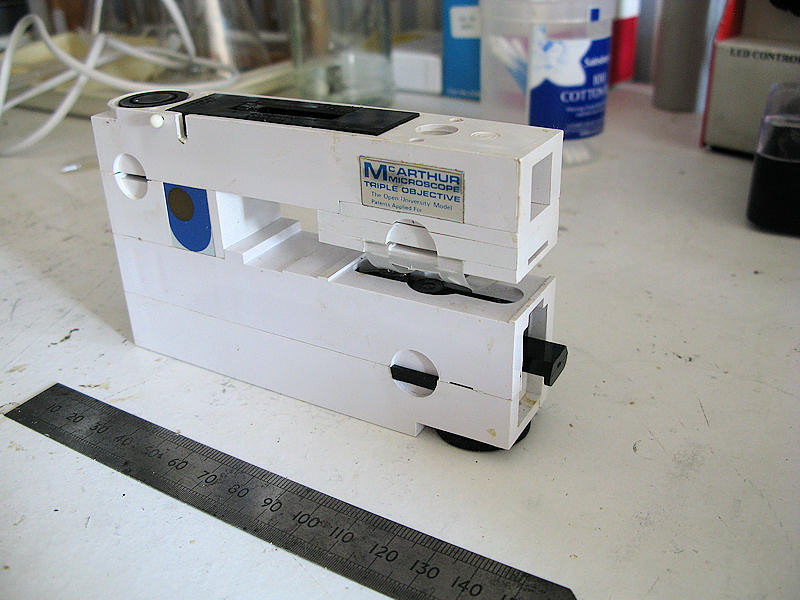

You can see in the picture above that the microscope has a number of slots available for filters etc. above and below the objectives.

I found that a plastic strip with different size holes could be used to provide effective substage aperture control in place of a substage diaphragm.

A similar transparent strip with different sized black patches can be used to provide darkground and oblique illumination. It should also be possible to use polarised light, although rotating a polariser would be tricky.


OU McArthur Microscope Transmitted Light Image of Diatoms

Compare this image with the one below of the same subject taken using a much more complex instrument:


Diatoms in DIC using a Zeiss Standard Microscope with Leitz DIC Optics

Ocular: Zeiss KPL-W 10/18; Objective: Leitz 25/0.55 NPL Fluotar ICT
